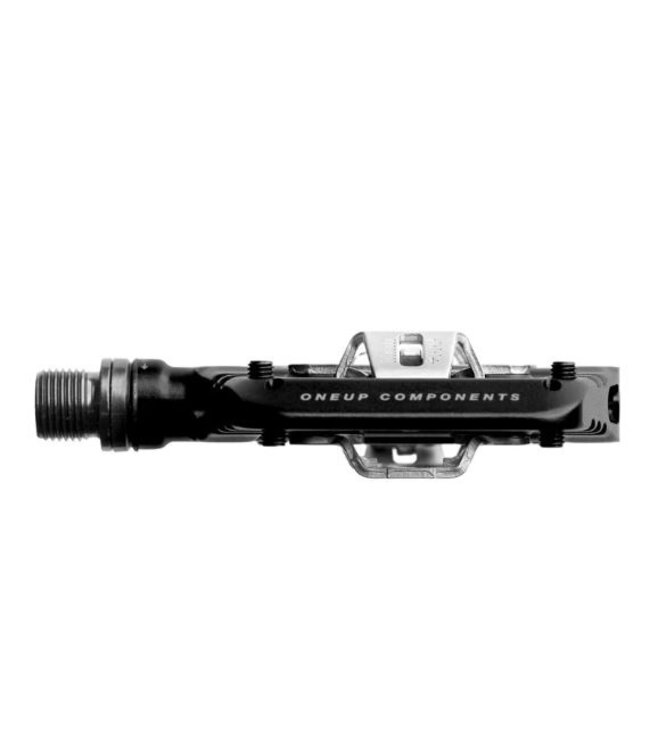

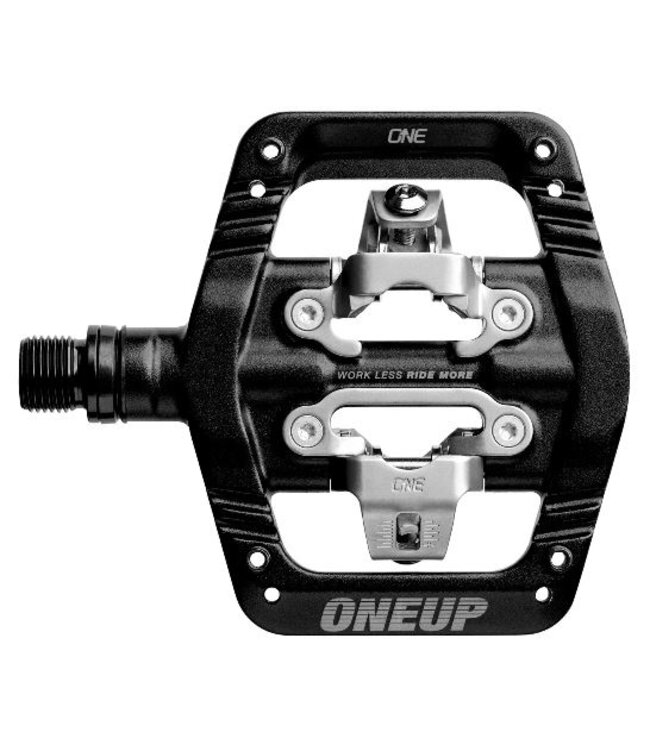

At only 26.8mm, OneUp Components Clip Pedals are the thinnest mountain bike clip pedals in the world. The thin, large platform has pins that actually touch your shoe and a precise cleat engagement that doesn't sacrifice power or ease of release. Get a more connected feel, with more support and less pedal strikes.
- Weight: 410g with pins (4 pins per side)
- Thickness: 14.4mm (body), 26.8mm (cage)
- Size: 80mm x 90mm (W x L)
- Stance width: 57.5mm (centre of clip to outside of crank face)
- Float: 5° (12° release angle)
- Cleats: SPD Compatible (includes 1mm cleat spacers for shoe tuning)
- Bearing configuration: Inboard Igus Bushing and 3x outboard sealed cartridge bearings
- Axle: Chromoly Steel with Black ED coating
- Pins: Hollow threaded pins (self cleaning hex through hole)
- Colours: Black, Red, Green, Blue, Orange, Purple, Gold, Bronze
- Suitable for: XC, DH, Trail
- Compatible with Shimano Cleats
What's in the box?
- 2x Clip Pedals (1x Left, 1x Right)
- 4x Installed hollow threaded pins per side (16x pins total)
- 2x OneUp Cleats with included hardware
- 2x Cleat Spacers
- 1x Pedal Bearing Nut Tool
Things you should know
- Comes with SPD™ compatible cleats and 1mm cleat spacers for shoe fit tuning.
- Hollow, removable traction pins offer fine-tuning of grip and support, with a mud-clearing design that can be installed or removed from either side of the pedal.
- Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.
- Custom, Stainless Steel, SPD™ Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp's own cleats and Shimano SPD™ cleats.
- 5 degrees of float and 12 degree release angle.
- 1 year manufacturer warranty.
- Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.
