Details

• Platform

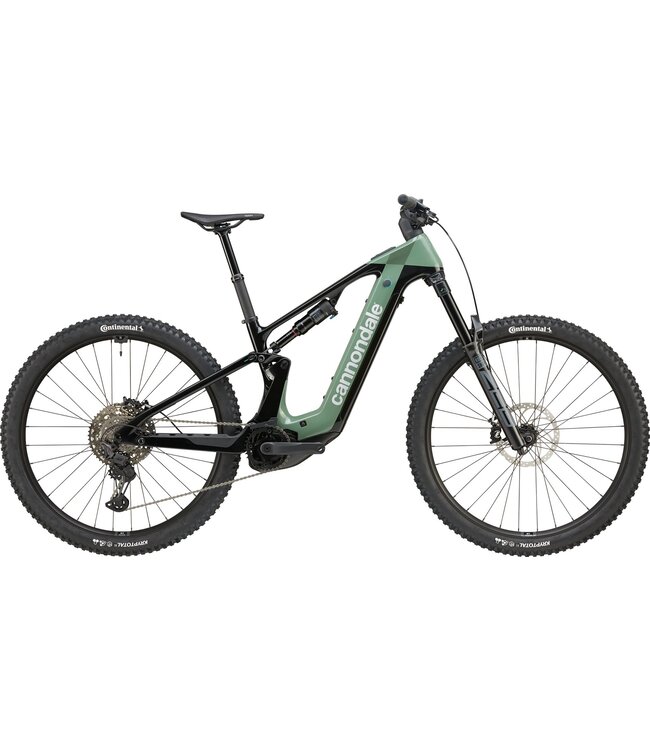

  Moterra Neo
• Model Name

  Moterra 2
• Model Code

  C65024U

Frameset

• Frame

  Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
• Fork

  RockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15x110mm Maxle, 44mm offset
• Headset

  Acros ICR, 1.5" to 1.8", sealed bearings
• Rear Shock

  RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm

E-System

• Drive Unit

  Bosch Performance Line CX
• Battery

  Bosch PowerTube, 800Wh
• Charger

  Bosch 4A
• Display

  Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote

Drivetrain

• Rear Derailleur

  Shimano XT M8130, LinkGlide
• Shifters

  Shimano CUES U8000, 11-speed, LinkGlide
• Chain

  Shimano LG500, LinkGlide, 11-speed
• Crank

  FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Rear Cogs

  Shimano CUES LG700, LinkGlide, 11-50, 11-speed

Brakes

• Brakes

  Magura MT5 4-piston hydraulic disc, 203mm Storm rotors
• Brake Levers

  Magura MT5 hydraulic disc

Wheels

• Rims

  WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless compatible
• Spokes

  DT Swiss Champion 2.0
• Tire Size

  2.4
• Wheel Size

  29
• Hubs

  (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
• Tires

  (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
• Front Tire

  Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable
• Rear Tire

  Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

Components

• Handlebar

  Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
• Stem

  Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
• Grips

  Cannondale TaperRidge
• Saddle

  Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
• Seatpost

  Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Extra

• Extra 1

  Bosch PowerMore range extender compatible
