• Model Name

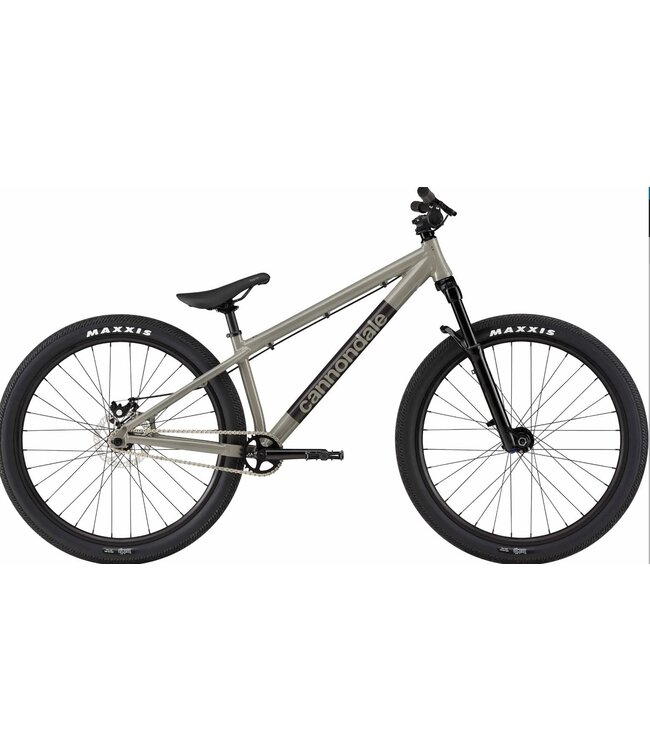

  Dave Dirt Jump
• Model Code

  C29201U

FRAMESET

• Frame

  C3 Alloy, Threaded BB, Disc Brake Mount, Integrated 1-1/8"-1.5" Tapered Headtube, 3/8" Dropout w/ Integrated Chain Tensioners
• Fork

  Manitou Circus Expert, Air w/ Rebound Adjust, 100mm, 20mm thru-axle, 1-1/8"-1-1/2" tapered steerer, preload adjuster, black stanchions
• Headset

  Integrated Sealed Bearing, Tapered

DRIVETRAIN

• Chain

  KMC HL1 Wide
• Crank

  Tubular Cr-Mo 3pc., 170mm Arms, Cold Forged CR-MO 22mm x 8T Spline Spindle, 28T
• Rear Cogs

  Sunrace 13T
• Bottom Bracket

  BMX Euro Type w/ Solid Spindle

BRAKES

• Brakes

  Tektro mechanical disc, 160/160mm rotors
• Brake Levers

  Tektro 2 finger

WHEELS

• Rims

  Alloy, double wall, 32h
• Spokes

  Stainless steel, 14g
• Tires

  Maxxis DTH 26x2.3"
• Tire Size

  2.3
• Wheel Size

  26
• Hubs

  (F) Formula 20x110mm thru-axle / (R) Sealed bearing cassette, 3/8x17mm female bolt
• Front Tire

  Maxxis DTH 26x2.3"
• Rear Tire

  Maxxis DTH 26x2.3"

COMPONENTS

• Handlebar

  Cannondale 3 Riser, 6061 Alloy, 30mm rise, 8° sweep, 6° rise, 780mm
• Stem

  Cannondale 3, 6061 Alloy, 31.8, 0°
• Grips

  Cannondale TrailShroom
• Saddle

  Cannondale Magic Steel, steel rails
• Seatpost

  Cannondale 3, 6061 Alloy, 27.2x200mm
